CDP6805E3C - CMOS 8-Bit Microprocessor

Download the CDP6805E3C datasheet PDF. This datasheet also covers the CDP6805E2 variant, as both devices belong to the same cmos 8-bit microprocessor family and are provided as variant models within a single manufacturer datasheet.

Description

Full Speed Operating Power @ 5V

.

.

Wait Mode Power

.

.

Stop Mode Power

.

.

112 Bytes of On-Chip RAM 16 Bidirectional I/O Lines on CDP6805E

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CDP6805E2-Intersil.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CDP6805E2 CMOS 8-Bit Microprocessor GE
CDP6805E2 Microprocessor Unit InnovASIC
CDP6805E2C CMOS 8-Bit Microprocessor GE
CDP680SG2 CMOS High-Performance Silicon-Gate 8-Bit Microcomputer GE
CDP680SG2C CMOS High-Performance Silicon-Gate 8-Bit Microcomputer GE

Other Datasheets by Intersil (Renesas)

Part Number Description
CDP6805E3 CMOS 8-Bit Microprocessor
CDP6805E2 CMOS 8-Bit Microprocessor
CDP6805E2C CMOS 8-Bit Microprocessor
CDP1833 CMOS 7-Bit Latch and Decoder Memory Interface
CDP1833C CMOS 7-Bit Latch and Decoder Memory Interface

Full PDF Text Transcription

Click to expand full text

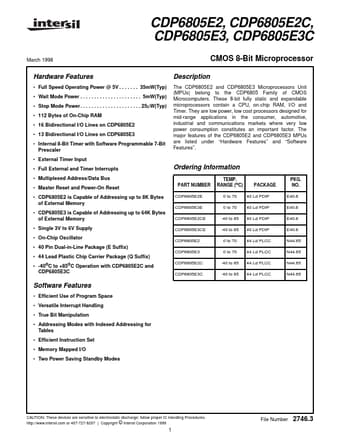

CDP6805E2, CDP6805E2C, CDP6805E3, CDP6805E3C March 1998 CMOS 8-Bit Microprocessor Hardware Features Description • Full Speed Operating Power @ 5V . . . . . . . 35mW(Typ) • Wait Mode Power . . . . . . . . . . . . . . . . . . . . . . 5mW(Typ) • Stop Mode Power . . . . . . . . . . . . . . . . . . . . . . 25µW(Typ) • 112 Bytes of On-Chip RAM • 16 Bidirectional I/O Lines on CDP6805E2 • 13 Bidirectional I/O Lines on CDP6805E3 • Internal 8-Bit Timer with Software Programmable 7-Bit Prescaler The CDP6805E2 and CDP6805E3 Microprocessors Unit (MPUs) belong to the CDP6805 Family of CMOS Microcomputers. These 8-bit fully static and expandable microprocessors contain a CPU, on-chip RAM, I/O and Timer.
