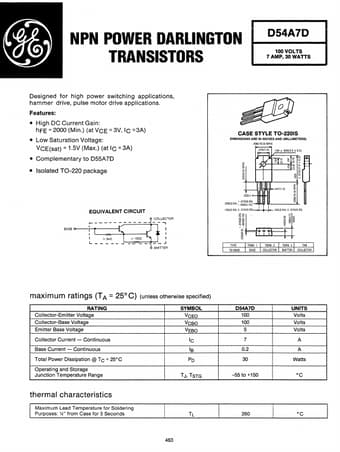

* High DC Current Gain: hFE = 2000 (Min.) (at VCE = 3V, IC =3A)
* Low Saturation Voltage: VCE(sat) = 1.51 (Max.) (at IC =3A)
* Complementary to D55A7D
* Isolated TO-220 package EQUIVALENT CIRCUIT COLLECTOR ~
D54A7D
GE
230.31 KB
Npn power darlington transistors.
NPN POWER DARLINGTON TRANSISTORS
D54A7D
100 VOLTS 7 AMP, 30 WATTS
Designed for high power switching applications, hammer drive, pulse motor drive ap.
