D66DV6

NPN POWER TRANSISTORS

D66DV6 Datasheet (607.61 KB)

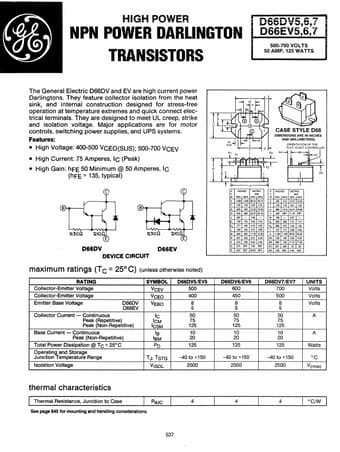

Preview of D66DV6 PDF Datasheet

Datasheet Details

Part number:

D66DV6

Manufacturer:

GE

File Size:

607.61 KB

Description:

Npn power transistors

D66DV6 Features

* High Voltage: 400-500 VCEO(SUS); 50D-700 VCEV

* High Current: 75 Amperes, IC (Peak)

* High Gain: hFE 50 Minimum @ 50 Amperes, IC (hFE = 135, typical) !ILu' +~f1!0:~®'~l~T~i -. @ I E lIT. T~IP~: ~ CASE STYLE D66 DIMENSIONS ARE IN INCHES AND (MILLIMETERS) ORIENTATION OF TH
