D66DS6, D66DS5 NPN POWER TRANSISTORS

📥 Download Datasheet  Datasheet Preview Page 1

Description

HIGH POWER NPN POWER DARLINGTON TRANSISTORS D66D85,6,7 D66ES5,6,7 500-700 VOLTS 20 AMP, 62.5 WATTS The General Electric D66DS/D66ES are high current.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: D66DS6, D66DS5. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
D66DS6, D66DS5
Manufacturer
GE
File Size
685.08 KB
Datasheet
D66DS5-GE.pdf
Description
NPN POWER TRANSISTORS
Note
This datasheet PDF includes multiple part numbers: D66DS6, D66DS5.
Please refer to the document for exact specifications by model.

Features

* High Voltage: 400-500 VCEO
* High Current: 30 Amperes, Ie (Peak)

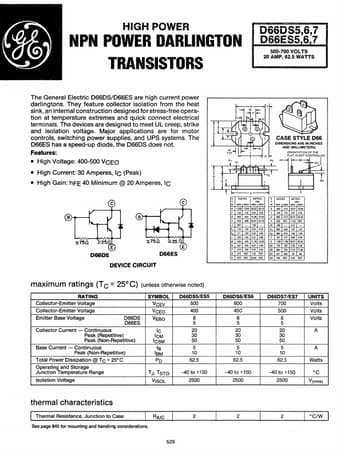

* High Gain: hFE 40 Minimum @ 20 Amperes, Ie © ~15n E D66DS . D66ES DEVICE CIRCUIT 1iITI t!i02~@l. :tlr ~~+ E l1 !. - ( @ I .1 ,T. T~IP~: ~ CASE STYLE 066 DIMENSIONS ARE IN INCHES AND (MILLIMETERS) ORIEN
