D66GV6, D66GV5 NPN POWER TRANSISTORS

D66GV6 Description

HIGH SPEED NPN POWER DARLINGTON TRANSISTORS D66GV5,6,7 400-500 VOLTS 50 AMP, 125 WATTS The D66GV is a high voltage NPN high current power darlingto.

D66GV6 Features

* the D66 Package offering: collector isolation from heat sink, TO-3 mounting compatibility and quick-connect terminals. . The D66GV also features a discrete fast recovery antiparallel high power diode which eliminates the need for an external flyback diode in motor control and other inverter appl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: D66GV6, D66GV5. Please refer to the document for exact specifications by model.

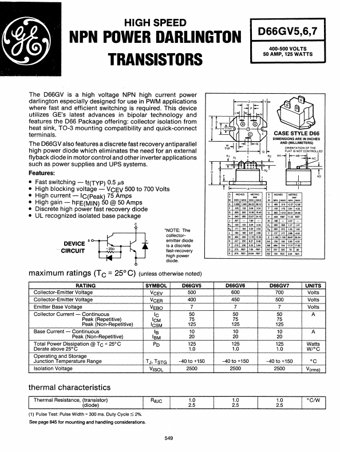

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
D66GV6, D66GV5
Manufacturer
GE
File Size
268.57 KB
Datasheet
D66GV5-GE.pdf
Description
NPN POWER TRANSISTORS
Note
This datasheet PDF includes multiple part numbers: D66GV6, D66GV5.
Please refer to the document for exact specifications by model.
