80N03 - MOSFET

Product Overview

📥 Download Datasheet

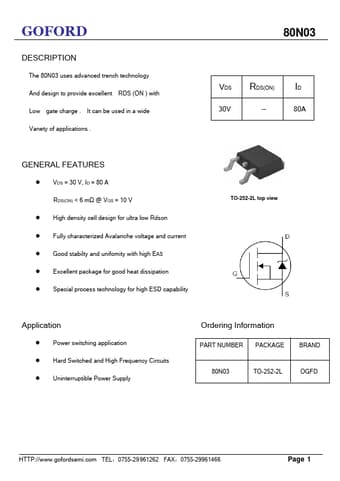

80N03 MOSFET by GFD - Datasheet Preview — Datasheet preview – 80N03

Datasheet Details

Part number	80N03
Manufacturer	GFD
File Size	2.17 MB
Description	MOSFET
Datasheet	80N03 Datasheet
Additional preview pages of the 80N03 datasheet.

Product details

Description

The 80N03 uses advanced trench technology And design to provide excellent RDS (ON ) with Low gate charge .

Features

VDS = 30 V, ID = 80 A RDS(ON) < 6 mΩ @ VGS = 10 V.
High density cell design for ultra low Rdson.
Fully characterized Avalanche voltage and current.
Good stabilty and unifomity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability TO-252-2L top view.
