80N06 - N-Channel MOSFET

Product Overview

📥 Download Datasheet

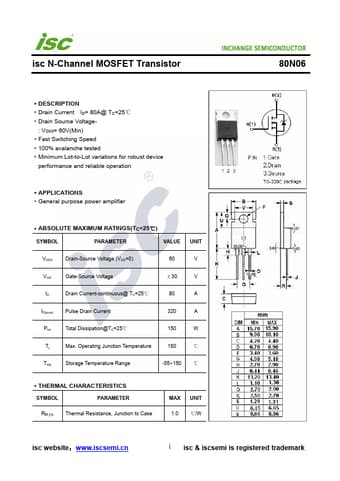

Datasheet preview – 80N06

Datasheet Details

Part number 80N06
Manufacturer Inchange Semiconductor
File Size 195.13 KB
Description N-Channel MOSFET
Datasheet download datasheet 80N06 Datasheet
Additional preview pages of the 80N06 datasheet.

Product details

Description

Drain Current ID= 80A@ TC=25℃ Drain Source Voltage- : VDSS= 60V(Min) Fast Switching Speed 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 60 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 80 A ID(puls) Pulse Drain Current
