DME375A

Pulsed Avionics

DME375A General Description

The DME375A is a high power COMMON BASE bipolar transistor. It is designed for pulsed systems in the frequency band 1025-1150 MHz. The device has gold thin-film metallization for proven highest MTTF. The transistor includes input and output prematch for broadband capability. Low thermal resistance p.

DME375A Datasheet (379.13 KB)

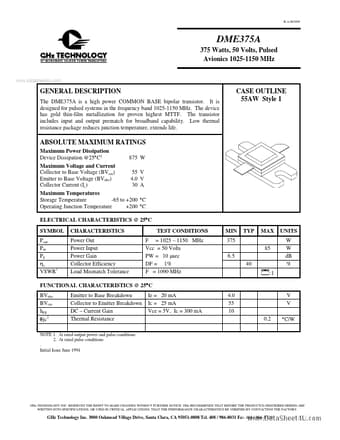

Preview of DME375A PDF

Datasheet Details

Part number:

DME375A

Manufacturer:

GHz Technology

File Size:

379.13 KB

Description:

Pulsed avionics.
