DME37B8DG Datasheet (240.43 KB)
DME37B8DG
Servo
240.43 KB
Dc brush motors.

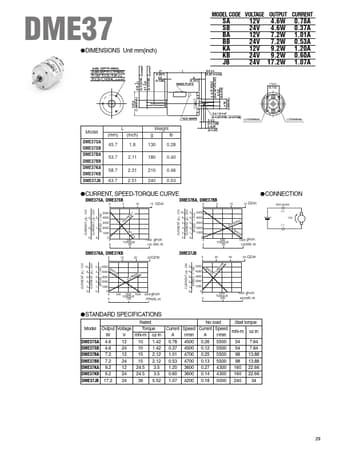

DME37
*DIMENSIONS Unit mm(inch)
MODEL CODE VOLTAGE OUTPUT CURRENT
SA
12V 4.6W 0.78A
SB
24V 4.6W 0.37A
BA
12V 7.2W 1.01A
BB
24V 7.2W 0.53A.
