DME37B6DGF Datasheet - Servo

DME37B6DGF DC Brush Motors

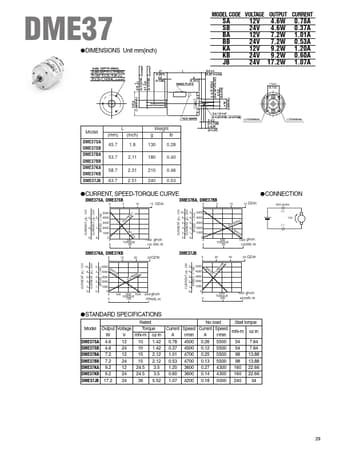

DME37 DIMENSIONS Unit mm(inch) MODEL CODE VOLTAGE OUTPUT CURRENT SA 12V 4.6W 0.78A SB 24V 4.6W 0.37A BA 12V 7.2W 1.01A BB 24V 7.2W 0.53A KA 12V 9.2W 1.20A KB 24V 9.2W 0.60A JB 24V 17.2W0 1.07A ( 18.6 ) (0.732) Model DME37SA DME37SB DME37BA DME37BB DME37KA DME37KB DME37JB L (mm) (inch) 45.7 1.8 53.7 2.11 58.7 2.31 63.7 2.51 Weight g lb 130 0.28 180 0.40 210 0.46 240 0.53 (+)TERMINAL (-)TERMINAL CURRENT, SPEED-TORQUE CURVE CONNECTION DME37SA, DME37SB.

DME37B6DGF Datasheet (240.43 KB)
