1SS145, 1SS141 SMALL SIGNAL SWITCHING DIODES

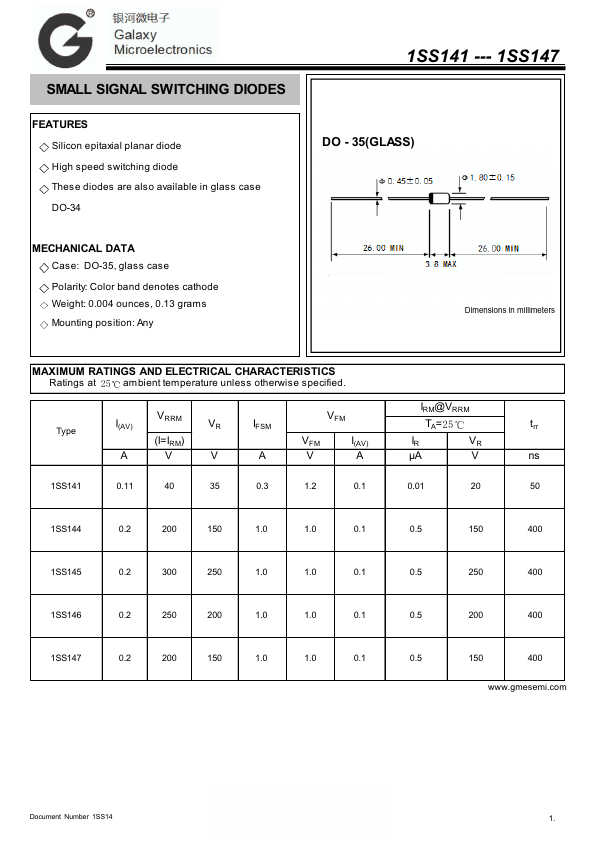

📥 Download Datasheet Datasheet Preview Page 1

Description

BL SMALL SIGNAL SWITCHING DIODES .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1SS145, 1SS141. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number
1SS145, 1SS141
Manufacturer
GME
File Size
72.83 KB
Datasheet
1SS141-GME.pdf
Description
SMALL SIGNAL SWITCHING DIODES
Note
This datasheet PDF includes multiple part numbers: 1SS145, 1SS141.
Please refer to the document for exact specifications by model.

Features

* Silicon epitaxial planar diode High speed switching diode These diodes are also available in glass case DO-34 MECHANICAL DATA Case: DO-35, glass case Polarity: Color band denotes cathode Weight: 0.004 ounces, 0.13 grams Mounting position: Any 1SS141
* - 1SS147 DO - 35(GLASS) Dimensions in mi
