BAV99RW - Dual series switching diode

Datasheet Summary

Features

  • z Fast switching speed. z High conductance. Pb Lead-free z Connected in series. z Surface mount package ideally suited for automatic insertion. BAV99RW.

📥 Download Datasheet

Datasheet preview – BAV99RW

Datasheet Details

Part number BAV99RW
Manufacturer GME
File Size 222.44 KB
Description Dual series switching diode
Datasheet download datasheet BAV99RW Datasheet
Additional preview pages of the BAV99RW datasheet.

📁 Similar Datasheet

  • BAV99RW - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
  • BAV99RW - Silicon Epitaxial Planar Switching Diode (SEMTECH)
  • BAV99RW - Dual Series Switching Diodes (MSV)
  • BAV99RW - Dual Series Switching Diodes (ON Semiconductor)
  • BAV99RWT1 - SC-70/SOT-323 Dual Series Switching Diode (Motorola Inc)
  • BAV99 - Silicon Epitaxial Planar Switching Diodes (Toshiba)
  • BAV99 - SWITCHING DIODE (SMC Diode)
  • BAV99 - Small Signal Switching Diode (Vishay)
  • BAV99 - SMD Small Signal Diodes (Diotec)
  • BAV99 - 200mA 70V High Conductance Ultra-Fast Switching Diode (ON Semiconductor)
Other Datasheets by GME
  • BAV99BRW - Surface Mount Fast Switching Diodes
  • BAV99DW - Surface Mount Fast Switching Diodes
  • BAV99S - Surface Mount Fast Switching Diodes
  • BAV99T - Surface Mount Fast Switching Diode
  • BAV16L - Silicon Epitaxial Planar Diode
  • BAV16WS - Silicon Epitaxial Planar Diode
  • BAV199 - Dual surface mount low leakage diode
  • BAV199DW - Surface Mount Fast Switching Diodes

Full PDF Text Transcription

Click to expand full text

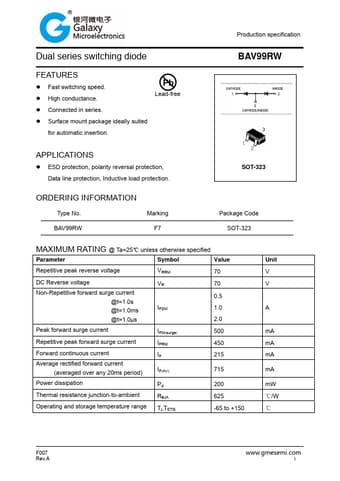

Production specification Dual series switching diode FEATURES z Fast switching speed. z High conductance. Pb Lead-free z Connected in series. z Surface mount package ideally suited for automatic insertion. BAV99RW APPLICATIONS z ESD protection, polarity reversal protection, Data line protection, Inductive load protection. ORDERING INFORMATION Type No. Marking BAV99RW F7 SOT-323 Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol Value Repetitive peak reverse voltage VRRM 70 DC Reverse voltage Non-Repetitive forward surge current @t=1.0s @t=1.0ms @t=1.0μs VR IFSM 70 0.5 1.0 2.
