GBU6D, GBU6A - Silicon Bridge Rectifiers

Datasheet Details

Part number	GBU6D, GBU6A
Manufacturer	GME
File Size	139.89 KB
Description	Silicon Bridge Rectifiers
Datasheet	GBU6A-GME.pdf
Note	This datasheet PDF includes multiple part numbers: GBU6D, GBU6A. Please refer to the document for exact specifications by model.

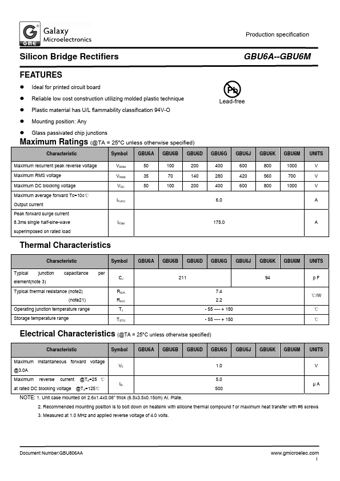

z Ideal for printed circuit board z Reliable low cost construction utilizing molded plastic technique z Plastic materrial has U/L flammability classification 94V-O z Mounting position: Any z Glass passivated chip junctions Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol GBU6A GBU6B GBU6D Maximum recurrent peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward Tc=100℃ Output current Peak forward surge current 8.3ms single half.
