MBF15M - Silicon Bridge Rectifiers

GME

📥 Download Datasheet

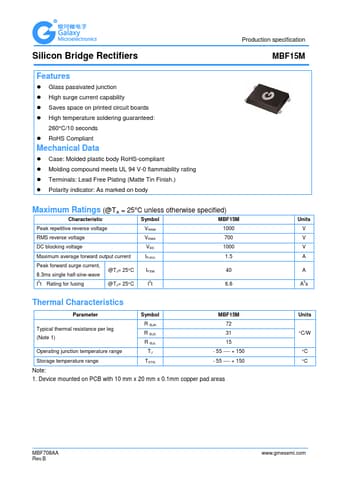

MBF15M Datasheet Preview — Preview of MBF15M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MBF15M
Manufacturer	GME
File Size	759.03 KB
Description	Silicon Bridge Rectifiers
Datasheet	MBF15M-GME.pdf

MBF15M Product details

Features

Glass passivated junction.
High surge current capability.
Saves space on printed circuit boards.
High temperature soldering guaranteed: 260°C/10 seconds.
RoHS Compliant Mechanical Data.
Case: Molded plastic body RoHS-compliant.
Molding compound meets UL 94 V-0 flammability rating.
Terminals: Lead Free Plating (Matte Tin Finish. ).
Polarity indicator: As marked on body Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol MB.
