MP15005 - Silicon Bridge Rectifiers

MP15005 Description

Production specification Silicon Bridge Rectifiers MP15005 *MP1510 .

MP15005 Features

* z Rating to 1000V PRV z Surge overload rating to 300 Amperes peak z Ideal for printed circuit board z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 Maximum Ratings (@TA = 25°C unless otherwise specified)

📥 Download Datasheet

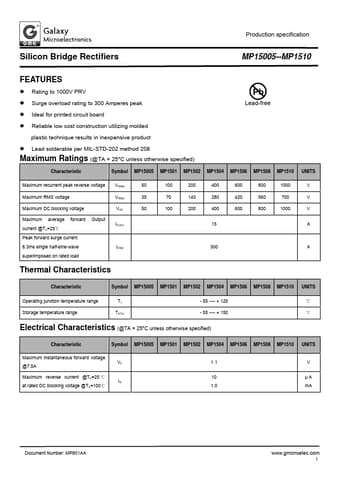

Preview of MP15005 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP15005
Manufacturer
GME
File Size
145.57 KB
Datasheet
MP15005-GME.pdf
Description
Silicon Bridge Rectifiers
