SMBJ400A, SMBJ5.0A - Transient Voltage Suppressor

SMBJ400A Description

Transient Voltage Suppressor Product specification SMBJ5.0A - SMBJ440A .

SMBJ400A Applications

* Low incremental surge resistance, excellent clamping capability
* 600W peak pulse power capability with very fast response time
* High temperature soldering guaranteed: 260°C / 10s at terminals
* Uni-directional applications
* RoHS compliant with Halogen-free Mechanical Data

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMBJ400A, SMBJ5.0A. Please refer to the document for exact specifications by model.

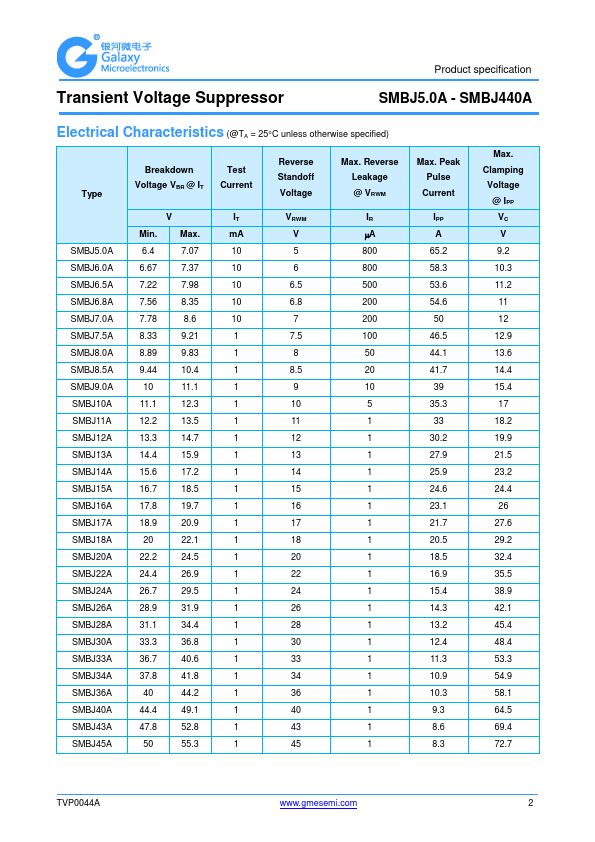

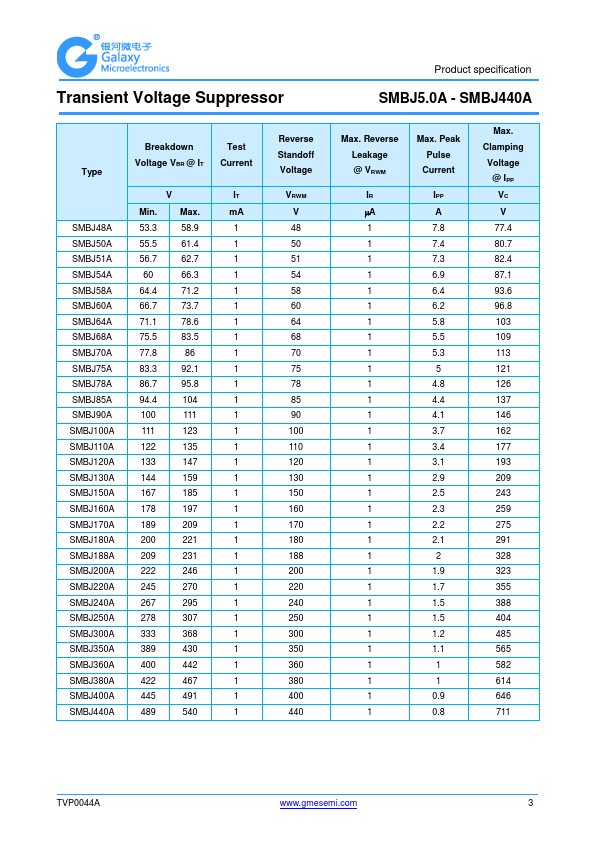

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMBJ400A, SMBJ5.0A
Manufacturer
GME
File Size
371.15 KB
Datasheet
SMBJ5.0A-GME.pdf
Description
Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: SMBJ400A, SMBJ5.0A.
Please refer to the document for exact specifications by model.
