SS13FA, SS12FA - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SS13FA Description

Production specification SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS SS12FA *SS110FA .

SS13FA Features

* z Schottky barrier rectifier Pb z Guarding protection Lead-free z Low forward voltage z Reverse energy tested z High current capability z Extremely low thermal resistance MECHANICAL DATA z Case: SMAFL molded plastic body z Polarity: Color band denotes cathode end z Mounting position: ANY

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS13FA, SS12FA. Please refer to the document for exact specifications by model.

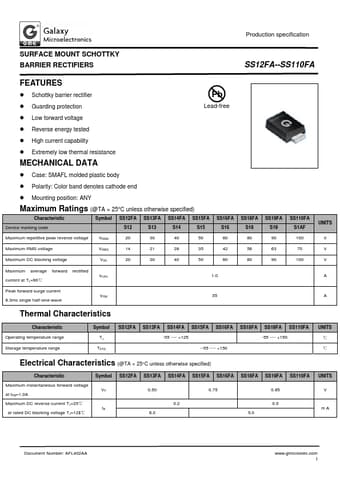

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS13FA, SS12FA
Manufacturer
GME
File Size
106.41 KB
Datasheet
SS12FA-GME.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SS13FA, SS12FA.
Please refer to the document for exact specifications by model.
