2300F Datasheet, Mosfet, GOFORD

2300F Features

  • Mosfet combine to make this design an extremely efficient and reliable device for variety of DC-DC applications. Features
  • VDSS RDS(ON) RDS(ON) ID @4.5V (Typ) @2.5V(Typ) 20V 20mΩ 2

PDF File Details

Part number:

2300F

Manufacturer:

GOFORD

File Size:

2.17MB

Download:

📄 Datasheet

Description:

N-channel mosfet. The 2300F designed by the trench processing techniques to achieve extremely low on-resistance. And fast switching speed and improved

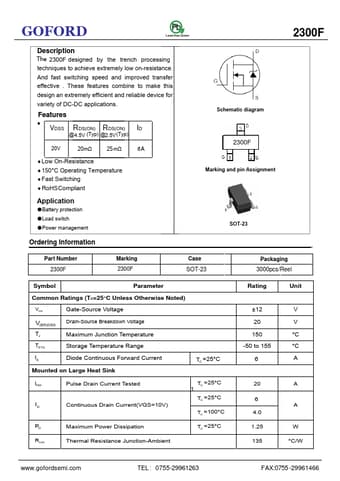

Datasheet Preview: 2300F 📥 Download PDF (2.17MB)
Page 2 of 2300F Page 3 of 2300F

2300F Application

  • Applications Features
  • VDSS RDS(ON) RDS(ON) ID @4.5V (Typ) @2.5V(Typ) 20V 20mΩ 25 mΩ 6A
  • Low On-Resistance
  • 150°C Ope
