G70P02, G70P02K Datasheet - GOFORD

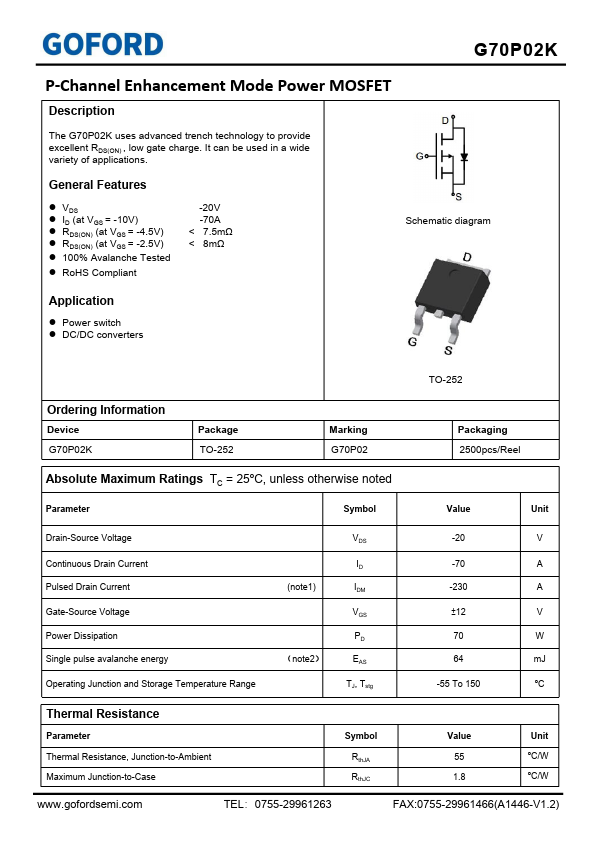

G70P02 P-Channel Enhancement Mode Power MOSFET

G70P02 Features

* l VDS l ID (at VGS = -10V) l RDS(ON) (at VGS = -4.5V) l RDS(ON) (at VGS = -2.5V) l 100% Avalanche Tested l RoHS Compliant -20V -70A < 7.5mΩ < 8mΩ Schematic diagram Application l Power switch l DC/DC converters TO-252 Ordering Information Device G70P02K Package TO-252 Marking G70P02 Packaging

G70P02K-GOFORD.pdf

This datasheet PDF includes multiple part numbers: G70P02, G70P02K. Please refer to the document for exact specifications by model.

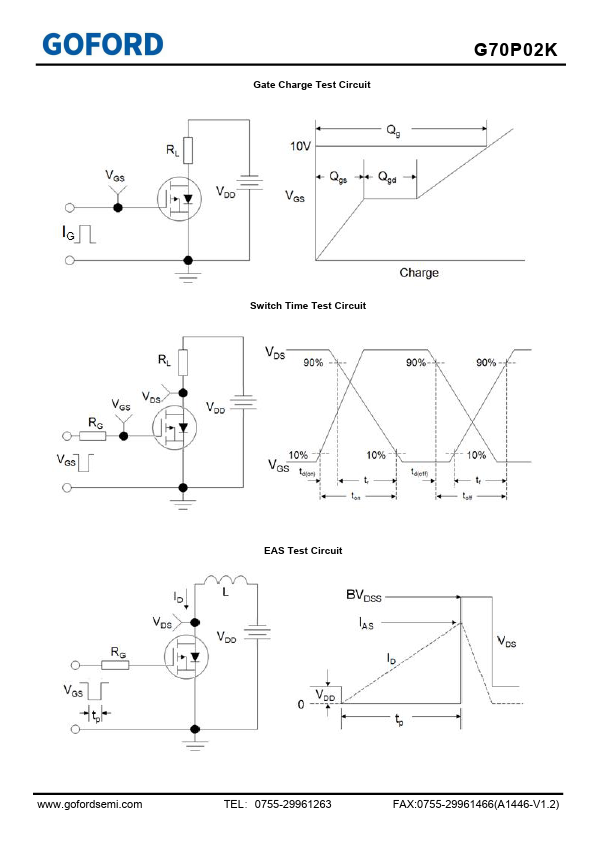

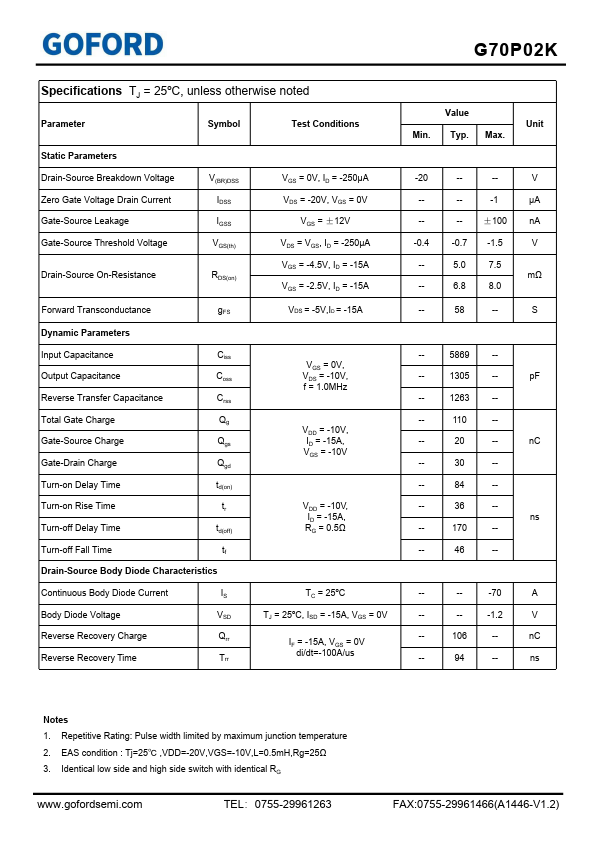

G70P02 Datasheet Preview Page 2 G70P02 Datasheet Preview Page 3

Datasheet Details

Part number:

G70P02, G70P02K

Manufacturer:

GOFORD

File Size:

598.98 KB

Description:

P-channel enhancement mode power mosfet.

Note:

This datasheet PDF includes multiple part numbers: G70P02, G70P02K.
Please refer to the document for exact specifications by model.
