GT800N10, GT800N10L Datasheet - GOFORD

GT800N10 N-Channel Enhancement Mode Power MOSFET

GT800N10 Features

* l VDS l ID (at VGS = 10V) l RDS(ON) (at VGS = 10V) l RDS(ON) (at VGS = 4.5V) 100V 3.5A < 80mΩ < 90mΩ l 100% Avalanche Tested l RoHS Compliant Schematic diagram Application l Power switch l DC/DC converters Ordering Information Device GT800N10L Package SOT-23-3L Marking GT800N10 SOT-23-3L P

GT800N10L-GOFORD.pdf

This datasheet PDF includes multiple part numbers: GT800N10, GT800N10L. Please refer to the document for exact specifications by model.

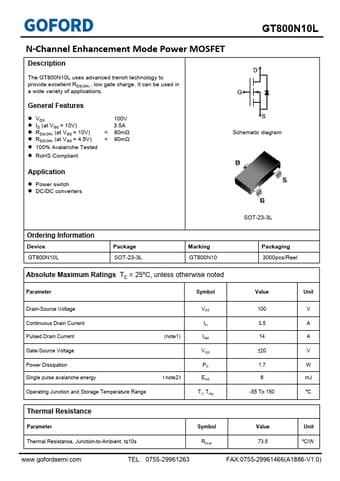

GT800N10 Datasheet Preview Page 2 GT800N10 Datasheet Preview Page 3

Datasheet Details

Part number:

GT800N10, GT800N10L

Manufacturer:

GOFORD

File Size:

787.83 KB

Description:

N-channel enhancement mode power mosfet.

Note:

This datasheet PDF includes multiple part numbers: GT800N10, GT800N10L.
Please refer to the document for exact specifications by model.
