KBPC1004, KBPC1004_GOOD, SINGLE-PHASE SILICON BRIDGE

KBPC10,15,25,35 SERIES SINGLE-PHASE SILICON BRIDGE Reverse Voltage - 50 to 1000 Volts Forward Current - 10.0/15.0/25.0/35.0 Amperes .

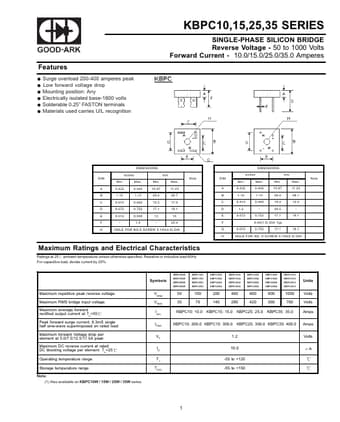

datasheet Preview Page 1 from Datasheet4u.com

KBPC1004_GOOD-ARKElectronics.pdf

KBPC1004 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBPC1004, KBPC1004_GOOD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KBPC1004, KBPC1004_GOOD

Manufacturer:

GOOD-ARK Electronics

File Size:

49.96 KB

Description:

SINGLE-PHASE SILICON BRIDGE

Note:

This datasheet PDF includes multiple part numbers: KBPC1004, KBPC1004_GOOD.
Please refer to the document for exact specifications by model.

Features

* Surge overload 200-400 amperes peak Low forward voltage drop Mounting position: Any Electrically isolated base-1800 volts Solderable 0.25 FASTON terminals Materials used carries U/L recognition DIMENSIONS DIM A B C D E F H inches Min. 0.432 1.12 0.612 0.672 0.512 Max. 0.442 1.13 0.692 0.752 0.590
