KBPC1006 Features
* Surge overload 200-400 amperes peak Low forward voltage drop Mounting position: Any Electrically isolated base-1800 volts Solderable 0.25 FASTON terminals Materials used carries U/L recognition DIMENSIONS DIM A B C D E F H inches Min. 0.432 1.12 0.612 0.672 0.512 Max. 0.442 1.13 0.692 0.752 0.590

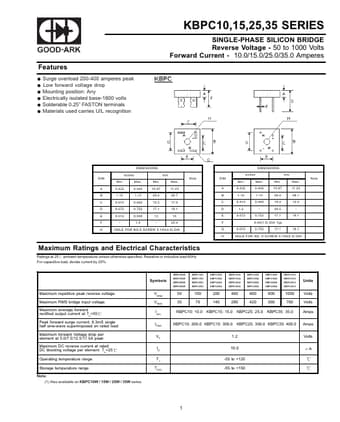

KBPC1006_GOOD-ARKElectronics.pdf
Datasheet Details
KBPC1006, KBPC1006_GOOD
GOOD-ARK Electronics
49.96 KB
Single-phase silicon bridge.
This datasheet PDF includes multiple part numbers: KBPC1006, KBPC1006_GOOD.
Please refer to the document for exact specifications by model.
