FZ1130, FZ1110-GOOD - Surface Mount Zener Diodes

GOOD-ARK

📥 Download Datasheet

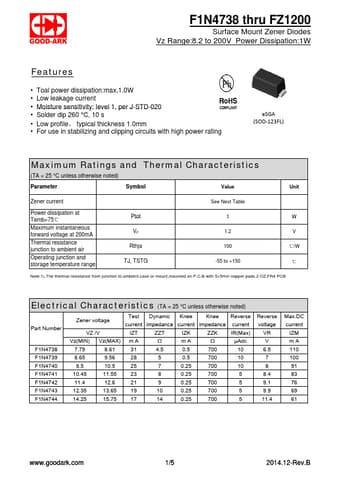

FZ1130 Datasheet Preview — This datasheet PDF includes multiple part numbers: FZ1130, FZ1110-GOOD. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FZ1130, FZ1110-GOOD
Manufacturer	GOOD-ARK
File Size	194.49 KB
Description	Surface Mount Zener Diodes
Datasheet	FZ1110-GOOD-ARK.pdf
Note	This datasheet PDF includes multiple part numbers: FZ1130, FZ1110-GOOD. Please refer to the document for exact specifications by model.

FZ1130 Product details

Features

Toal power dissipation:max,1.0W.
Low leakage current.
Moisture sensitivity: level 1, per J-STD-020.
Solder dip 260 °C, 10 s.
Low profile， typical thickness 1.0mm.
For use in stabilizing and clipping circuits with high power rating eSGA (SOD‐123FL) Maximum Ratings and Thermal Characteristics (TA = 25 °C unless otherwise noted) Parameter Symbol Value Unit Zener current See Next Table Power dissipation at Tamb=75℃ Maximum instantaneous.
