GBJ15M, GBJ15A-GOOD Glass Passivated Single-Phase Bridge Rectifiers

GBJ15M Description

GBJ15A thru GBJ15M Glass Passivated Single-Phase Bridge Rectifiers Reverse Voltage 50 to 1000 Volts Forward Current 15.0 Amperes .

GBJ15M Features

* Thin Single In-Line package Ideal for printed circuit boards Glass passivated chip junction High surge current capability High case dielectric strength of 2500 VRMS Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Mechanical Data Case: GBJ(5S) Epoxy meets UL-94V-0 Flamma

GBJ15M Applications

* General purpose use in ac-to-dc bridge full wave rectification for Switching Power Supply, Home Appliances, Office Equipment, Industrial Automation applications Package outline dimensions in millimeters Maximum Ratings and Electrical

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBJ15M, GBJ15A-GOOD. Please refer to the document for exact specifications by model.

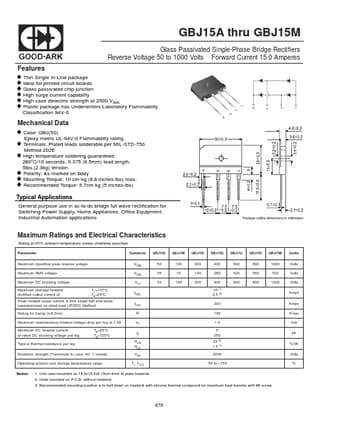

datasheet Preview Page 2

Datasheet Details

Part number
GBJ15M, GBJ15A-GOOD
Manufacturer
GOOD-ARK
File Size
160.45 KB
Datasheet
GBJ15A-GOOD-ARK.pdf
Description
Glass Passivated Single-Phase Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: GBJ15M, GBJ15A-GOOD.
Please refer to the document for exact specifications by model.
