LMS14 - Low Profile Surface Mount Schottky Bridge Rectifiers

This page provides the datasheet information for the LMS14, a member of the LMS12-GOOD Low Profile Surface Mount Schottky Bridge Rectifiers family.

Datasheet Summary

Features

  • Super Low VF Schottky barrier bridge rectifiers.
  • Low profile，Max Height 1.30mm.
  • Low forward voltage drop.
  • Low leakage current.
  • Moisture sensitivity: level 1, per J-STD-020.
  • AEC-Q101 qualified.
  • High temperature soldering guaranteed: 260℃/10 seconds.
  • Halogen-free according to IEC 61249-2-21 definition LPMB Typical.

📥 Download Datasheet

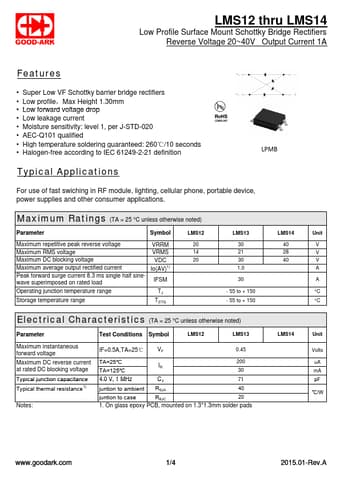

Datasheet preview – LMS14
