LS28 - Surface Mount Schottky Rectifier

This page provides the datasheet information for the LS28, a member of the LS22-GOOD Surface Mount Schottky Rectifier family.

Datasheet Summary

Features

  • Low forward voltage drop.
  • Low leakage current.
  • Moisture sensitivity: level 1, per J-STD-020.
  • Solder dip 260 °C, 10 s.
  • Low profile, typical thickness 1.0mm.
  • AEC-Q101 qualified.

📥 Download Datasheet

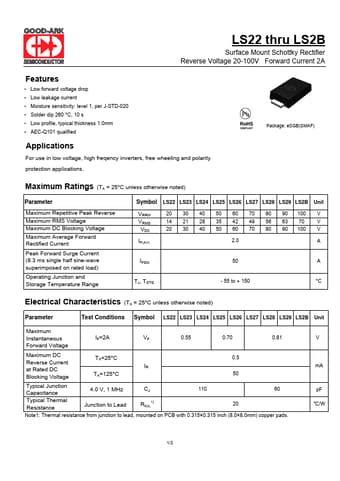

Datasheet preview – LS28

Datasheet Details

Part number LS28
Manufacturer GOOD-ARK
File Size 444.77 KB
Description Surface Mount Schottky Rectifier
Datasheet download datasheet LS28 Datasheet
