LS2801R5S - DC-DC CONVERTER

LS2801R5S Description

HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER PD-96964I LS-SERIES 28V Input, Single/Dual Output .
The LS-Series of DC-DC converters are, high reliability devices designed for hostile radiation hardened environments.

LS2801R5S Features

* 18 to 40V DC Input Range
* Total Ionization Dose > 100 kRad(Si)
* SEE Hardened to LET (Heavy Ions) up to 82 MeV
* cm2/mg (SEU, SEL, SEGB, SEGR)
* Internal EMI filter; Converter Capable of meeting MIL-STD-461C CE03
* Low Weight, < 80 grams
* Magnetically Coupled Feedback

LS2801R5S Applications

* the HM, M3H and M3G-Series of DCDC converters are recommended. Manufactured in a facility fully qualified to MIL-PRF-38534, these converters are fabricated utilizing DLA Land and Maritime qualified processes. For available screening options, refer to device screening table in the data sheet. Variati

📥 Download Datasheet

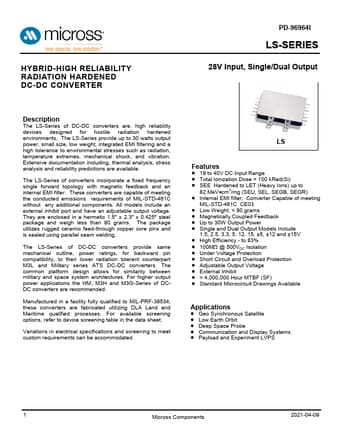

Preview of LS2801R5S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LS2801R5S
Manufacturer
Micross
File Size
1.63 MB
Datasheet
LS2801R5S-Micross.pdf
Description
DC-DC CONVERTER
