LS2815S, LS2801R5S, HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER

PD-96964E HYBRID - HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER .
The LS-Series of DC-DC converters are, high reliability devices designed for hostile radiation hardened environments.

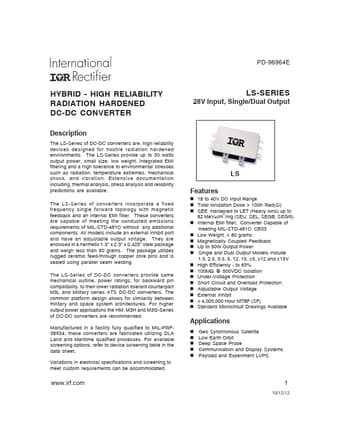

datasheet Preview Page 1 from Datasheet4u.com

LS2801R5S-InternationalRectifier.pdf

LS2815S Datasheet Preview — This datasheet PDF includes multiple part numbers: LS2815S, LS2801R5S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LS2815S, LS2801R5S

Manufacturer:

International Rectifier

File Size:

243.99 KB

Description:

HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER

Note:

This datasheet PDF includes multiple part numbers: LS2815S, LS2801R5S.
Please refer to the document for exact specifications by model.

Features

* n 18 to 40V DC Input Range n Total Ionization Dose > 100K Rad(Si) n SEE Hardened to LET (Heavy Ions) up to 82 MeV
* cm2/mg (SEU, SEL, SEGB, SEGR) n Internal EMI filter; Converter Capable of meeting MIL-STD-461C CE03 n Low Weight, < 80 grams n Magnetically Coupled Feedback n Up to 30W Output Po

Applications

* the HM, M3H and M3G-Series of DC-DC converters are recommended. Manufactured in a facility fully qualified to MIL-PRF38534, these converters are fabricated utilizing DLA Land and Maritime qualified processes. For available screening options, refer to device screening table in the data sheet. Variati
