LS29, LS22-GOOD - Surface Mount Schottky Rectifier

LS29 Description

LS22 thru LS2B Surface Mount Schottky Rectifier Reverse Voltage 20-100V Forward Current 2A .

LS29 Features

* Low forward voltage drop
* Low leakage current
* Moisture sensitivity: level 1, per J-STD-020
* Solder dip 260 °C, 10 s
* Low profile, typical thickness 1.0mm

LS29 Applications

* For use in low voltage, high freqency inverters, free wheeling and polarity protection applications. Package: eSGB(SMAF) Maximum Ratings (TA = 25°C unless otherwise noted) Parameter Maximum Repetitive Peak Reverse Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LS29, LS22-GOOD. Please refer to the document for exact specifications by model.

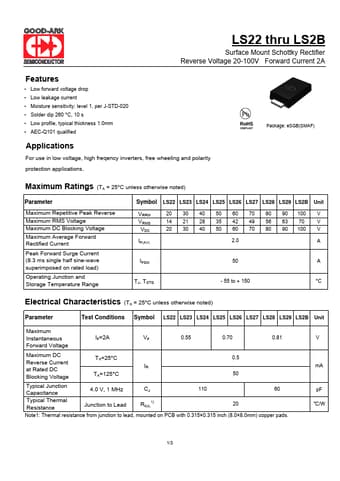

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LS29, LS22-GOOD
Manufacturer
GOOD-ARK
File Size
444.77 KB
Datasheet
LS22-GOOD-ARK.pdf
Description
Surface Mount Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: LS29, LS22-GOOD.
Please refer to the document for exact specifications by model.
