LS345A, LS34A-GOOD - Surface Mount Schottky Rectifier

LS345A Description

LS34A thru LS345A Surface Mount Schottky Rectifier Reverse Voltage 40~45V Forward Current 3A .

LS345A Features

* Schottky barrier diodes
* Low forward voltage drop
* Solder dip 260 °C, 10 s
* Low profile， typical thickness 1.0mm

LS345A Applications

* For use in low voltage,high freqency inverters,free wheeling, and polarity protection application Maximum Ratings (TA = 25 °C unless otherwise noted) Parameter Symbol Maximum repetitive peak reverse voltage VRRM Maximum RMS voltage VRMS Maximum DC blocking voltage VDC Maximum average forw

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LS345A, LS34A-GOOD. Please refer to the document for exact specifications by model.

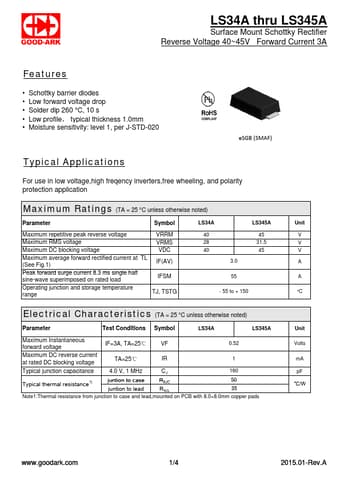

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LS345A, LS34A-GOOD
Manufacturer
GOOD-ARK
File Size
187.06 KB
Datasheet
LS34A-GOOD-ARK.pdf
Description
Surface Mount Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: LS345A, LS34A-GOOD.
Please refer to the document for exact specifications by model.
