LS36A, LS36A-GOOD, Surface Mount Schottky Rectifier

LS36A Surface Mount Schottky Rectifier Reverse Voltage 60V Forward Current 3A .

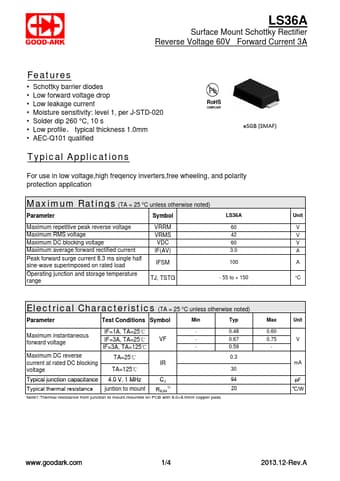

datasheet Preview Page 1 from Datasheet4u.com

LS36A-GOOD-ARK.pdf

LS36A Datasheet Preview — This datasheet PDF includes multiple part numbers: LS36A, LS36A-GOOD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LS36A, LS36A-GOOD

Manufacturer:

GOOD-ARK

File Size:

201.56 KB

Description:

Surface Mount Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: LS36A, LS36A-GOOD.
Please refer to the document for exact specifications by model.

Features

* Schottky barrier diodes
* Low forward voltage drop
* Low leakage current
* Moisture sensitivity: level 1, per J-STD-020
* Solder dip 260 °C, 10 s
* Low profile， typical thickness 1.0mm

Applications

* For use in low voltage,high freqency inverters,free wheeling, and polarity protection application Maximum Ratings (TA = 25 °C unless otherwise noted) Parameter Symbol Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified curren
