MUR1015CT - Super Fast Rectifiers

Product Overview

GOOD-ARK

Part number	MUR1015CT
Manufacturer	GOOD-ARK
File Size	162.47 KB
Description	Super Fast Rectifiers
Datasheet	MUR1015CT Datasheet
Note	This datasheet PDF includes multiple part numbers: MUR1015CT, MUR1005CT_GOOD. Please refer to the document for exact specifications by model.

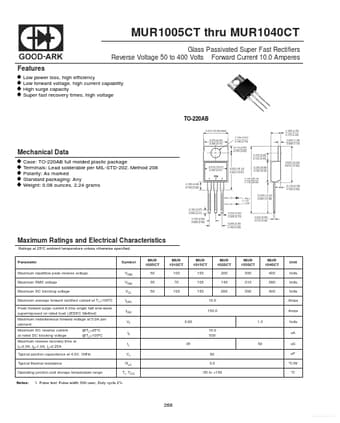

Additional preview pages of the MUR1015CT datasheet.

Low power loss, high efficiency Low forward voltage, high current capability High surge capacity Super fast recovery times, high voltage TO-220AB Mechanical Data Case: TO-220AB full molded plastic package Terminals: Lead solderable per MIL-STD-202, Method 208 Polarity: As marked Standard packaging: Any Weight: 0.08 ounces, 2.24 grams Maximum Ratings and Electrical Characteristics Ratings at 25oC ambient temperature unless otherwise specified. MUR 1005C T 50 35 50 MUR 1010C T.
