Features
Ultra Low VF=0.64V at IF=3A (25°C) Ultra Low VF=0.76V at IF=10A (25°C)
● Low forward voltage drop, low power losses ● High efficiency operation ● Plastic package has underwriters Laboratory
Flammability Classification 94V-0

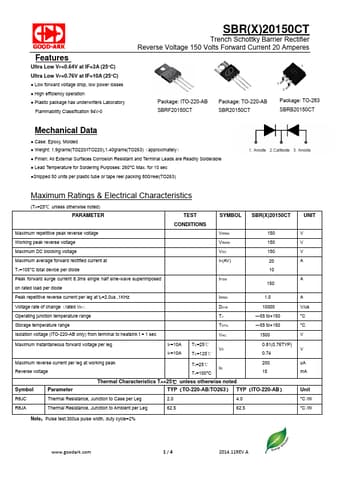

SBR(X)20150CT
Trench Schottky Barrier Rectifier Reverse Voltage 150 Volts Forward Current 20 Amperes
Package: ITO-220-AB SBRF20150CT
Package: TO-220-AB SBR20150CT
Package: TO-263 SBRB20150CT
Mechanical Data
● Case: Epoxy, Molded ● Weight: 1.9grams(TO220/ITO220),1.40grams(TO263)（approximately） ● Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable ● Lead Temperature for Soldering Purposes: 260°C Max.
SBR20150CT Datasheet
