SCT500D, SCT500D-GOOD - Twin SMD Ceramic PTC Thermistor

GOOD-ARK

📥 Download Datasheet

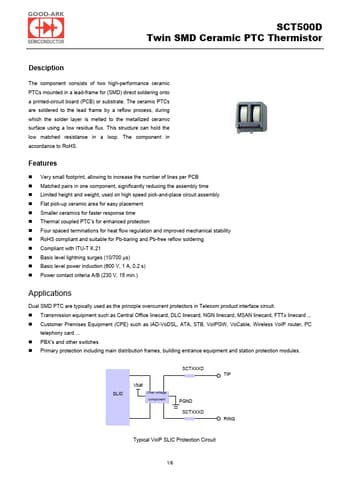

SCT500D Datasheet Preview — This datasheet PDF includes multiple part numbers: SCT500D, SCT500D-GOOD. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SCT500D, SCT500D-GOOD
Manufacturer	GOOD-ARK
File Size	345.56 KB
Description	Twin SMD Ceramic PTC Thermistor
Datasheet	SCT500D-GOOD-ARK.pdf
Note	This datasheet PDF includes multiple part numbers: SCT500D, SCT500D-GOOD. Please refer to the document for exact specifications by model.

SCT500D Product details

Features

Very small footprint, allowing to increase the number of lines per PCB.
Matched pairs in one component, significantly reducing the assembly time.
Limited height and weight, used on high speed pick-and-place circuit assembly.
Flat pick-up ceramic area for easy placement.
Smaller ceramics for faster response time.
Thermal coupled PTC’s for enhanced protection.
Four spaced terminations for heat flow regulation and improved mechanical s.
