SCT50N120 Datasheet, Mosfet, STMicroelectronics

✔ SCT50N120 Features

Very tight variation of on-resistance vs. temperature
Very high operating junction temperature capability (TJ = 200 °C)
Very fast and robust intrinsic body diode

✔ SCT50N120 Application

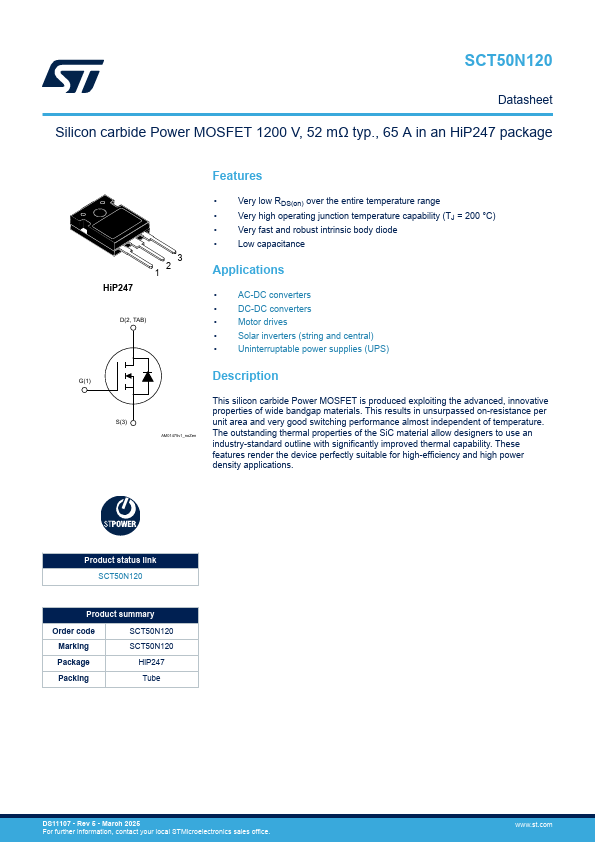

Figure 1: Internal schematic diagram
Solar inverters, UPS
Motor drives
High voltage DC-DC converters

PDF File Details

STMicroelectronics manufacturer logo

Part number:

SCT50N120

Manufacturer:

STMicroelectronics ↗

File Size:

703.08kb

Download:

📄 Datasheet

Description:

Silicon carbide power mosfet. This silicon carbide Power MOSFET is produced exploiting the advanced, innovative properties of wide bandgap materials. This results

📥 Download PDF (703.08kb)
