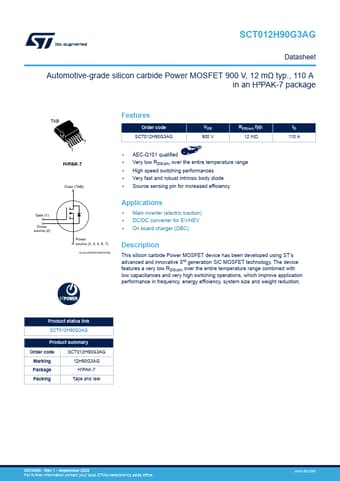

SCT012H90G3AG Datasheet, Mosfet, STMicroelectronics

SCT012H90G3AG Features

• Mosfet Order code SCT012H90G3AG VDS 900 V RDS(on) typ. 12 mΩ
• AEC-Q101 qualified
• Very low RDS(on) over the entire temperature range
• High speed switching perform

PDF File Details

Part number:

SCT012H90G3AG

Manufacturer:

STMicroelectronics ↗

File Size:

385.75kb

Download:

📄 Datasheet

Description:

Automotive-grade silicon carbide power mosfet. This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFET technology.

SCT012H90G3AG Application

• Applications
• Main inverter (electric traction)
• DC/DC converter for EV/HEV
• On board charger (OBC) Description This sili
