SCT015W120G3-4AG Datasheet, Mosfet, STMicroelectronics

SCT015W120G3-4AG Features

  • Mosfet Order code SCT015W120G3-4AG VDS 1200 V RDS(on) typ. 15 mΩ ID 129 A HiP247-4 2 34 1 Drain(1, TAB)
  • AEC-Q101 qualified
  • Very fast and robust intrinsic body diode

PDF File Details

Part number:

SCT015W120G3-4AG

Manufacturer:

STMicroelectronics ↗

File Size:

210.41kb

Download:

📄 Datasheet

Description:

Automotive-grade silicon carbide power mosfet. This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFET technology.

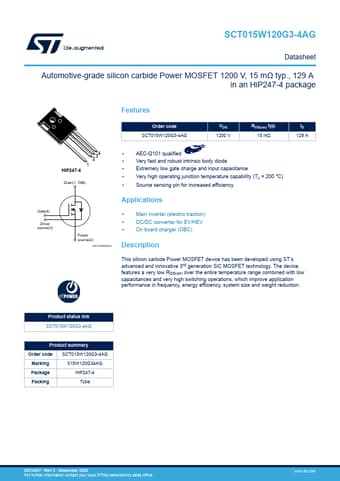

Datasheet Preview: SCT015W120G3-4AG 📥 Download PDF (210.41kb)
Page 2 of SCT015W120G3-4AG Page 3 of SCT015W120G3-4AG

SCT015W120G3-4AG Application

  • Applications Power source(2) ND1TPS2DS3G4
  • Main inverter (electric traction)
  • DC/DC converter for EV/HEV
  • On board char
