SCT53600 Datasheet - SCT

Ideal Diode Controller

SCT53600 Features

* 4V to 65V Operating Range

* 65V Reverse voltage rating

* Charge pump for external N-Channel MOSFET

* 20mV ANODE to CATHODE forward voltage drop regulation

* 12V Gate Drive Voltage

* With Enable Input

* Drive High Side External N-Channel MOSFET

* 1μA Shutdow

SCT53600 General Description

The SCT53600 is an ideal diode controller which paired with an external N-channel MOSFET as an ideal diode rectifier for low loss reverse polarity protection to replace a Schottky Diode. The SCT53600 operates over a wide supply voltage range of 4V to 65V. The device can withstand and protect the loa.

SCT53600 Datasheet (1.41 MB)

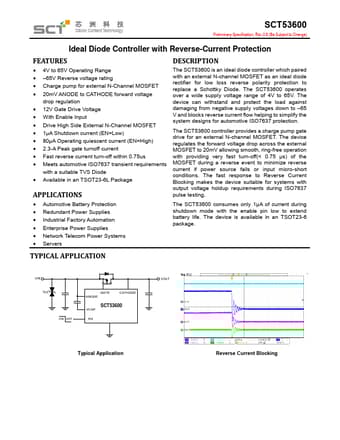

SCT53600 Datasheet Preview — Preview of SCT53600 PDF

Datasheet Details

Part number:

SCT53600

Manufacturer:

SCT

File Size:

1.41 MB

Description:

Ideal diode controller.
Silicon Content Technology SCT53600 Preliminary Specification, Rev.0.6 (Be Subject to Change) Ideal Diode Controller with Reverse-Current Protectio.
