SCT2325, SCT2323 Datasheet - SCT

SCT2325 2A Synchronous Step-down DCDC Converter

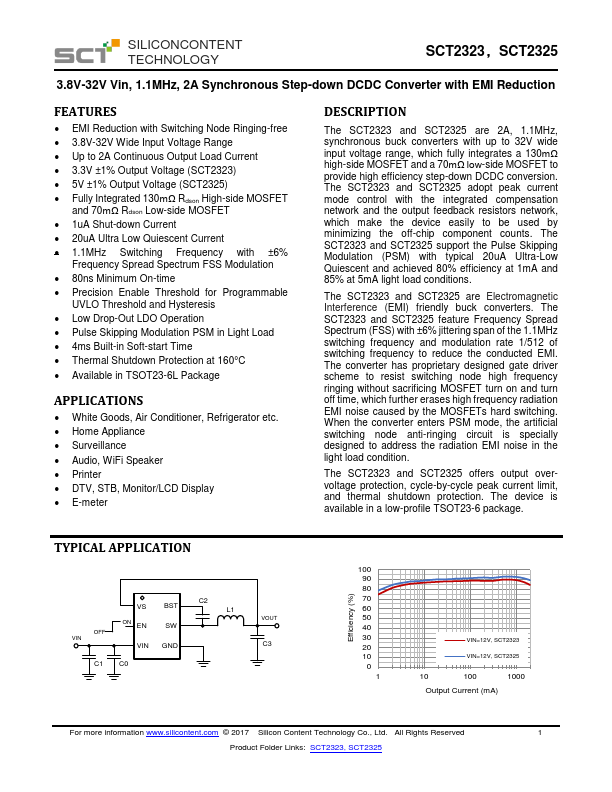

The SCT2323 and SCT2325 are 2A, 1.1MHz, synchronous buck converters with up to 32V wide input voltage range, which fully integrates a 130mΩ high-side MOSFET and a 70mΩ low-side MOSFET to provide high efficiency step-down DCDC conversion. The SCT2323 and SCT2325 adopt peak current mode control with t.

SCT2325 Features

* EMI Reduction with Switching Node Ringing-free

* 3.8V-32V Wide Input Voltage Range

* Up to 2A Continuous Output Load Current

* 3.3V ±1% Output Voltage (SCT2323)

* 5V ±1% Output Voltage (SCT2325)

* Fully Integrated 130mΩ Rdson High-side MOSFET and 70m

SCT2323-SCT.pdf

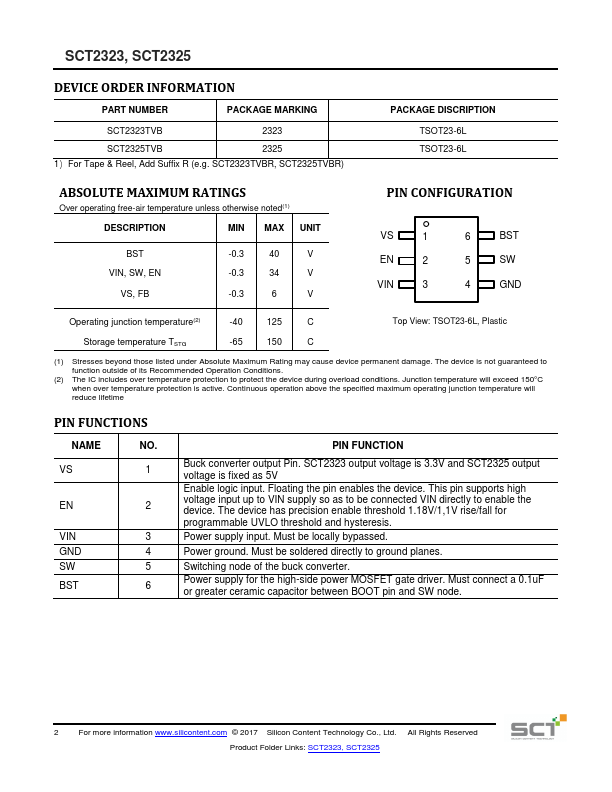

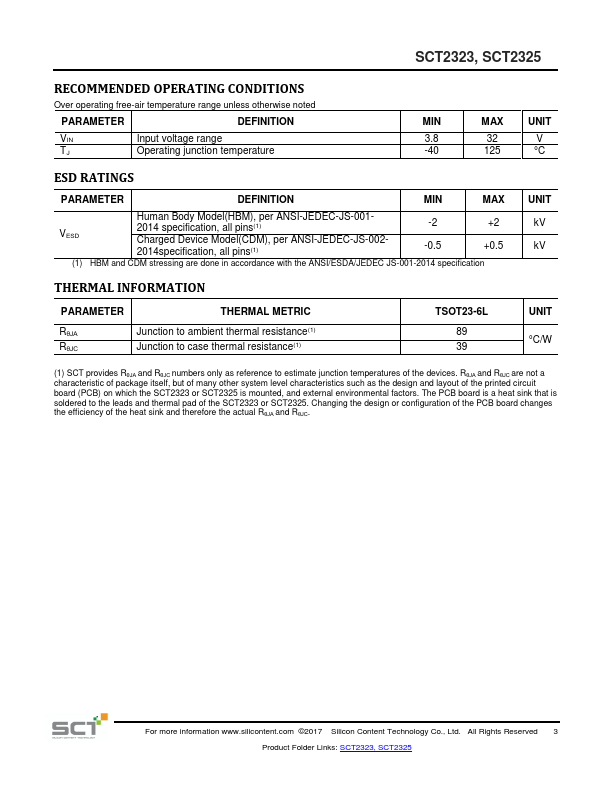

SCT2325 Datasheet Preview — This datasheet PDF includes multiple part numbers: SCT2325, SCT2323. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SCT2325, SCT2323

Manufacturer:

SCT

File Size:

831.33 KB

Description:

2a synchronous step-down dcdc converter.

Note:

This datasheet PDF includes multiple part numbers: SCT2325, SCT2323.
Please refer to the document for exact specifications by model.
