SCT2302

2-Channel High Constant Driver

SCT2302 Features

* Patented logical feedback for automatic supply regulation Cascaded operation for multiple LED drivers is supported Power0on open detection to bypass unconnected or broken LED strings 2 constant current sinkers with output voltage sustainable to 24V Excellent regulation to load, supply voltage and te

SCT2302 General Description

The SCT2302 is a patented logical feedback for automatic supply regulation to minimize the system power consumption. The SCT2302 is a two channels constant current driver for LED lighting. It provides the PWM dimming by sinking constant current from LED clusters with minimum pulse width 20us. The di.

SCT2302 Datasheet (397.05 KB)

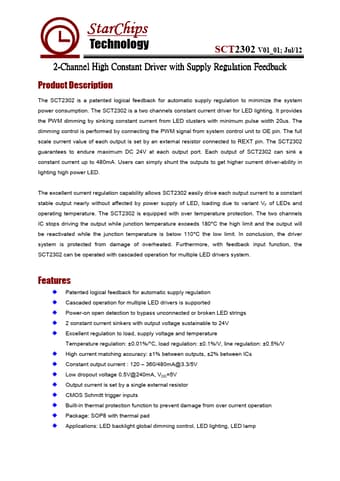

SCT2302 Datasheet Preview — Preview of SCT2302 PDF

Datasheet Details

Part number:

SCT2302

Manufacturer:

StarChips

File Size:

397.05 KB

Description:

2-channel high constant driver.
