Part number: SCT20N120
Manufacturer: STMicroelectronics (https://www.st.com/)
File Size: 501.98KB
Download: 📄 Datasheet

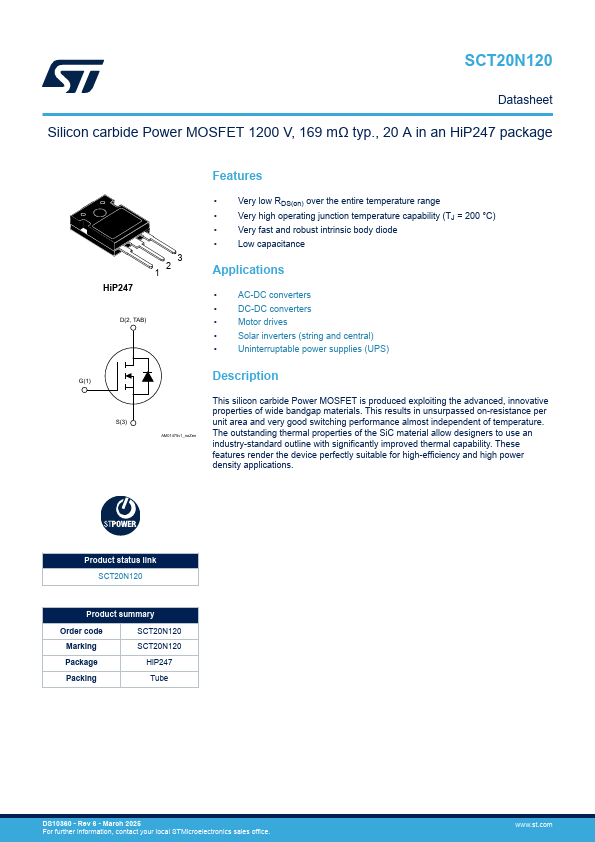

Description: Silicon carbide Power MOSFET
* Very tight variation of on-resistance vs. temperature
* Very high operating junction temperature capability (TJ = 200 °C)
* Very fast and robust intrinsic b.
* Solar inverters, UPS
* Motor drives
* High voltage DC-DC converters
* Switch mode power supplies
G(1).
This silicon carbide Power MOSFET is produced exploiting the advanced, innovative properties of wide bandgap materials. This results in unsurpassed on-resistance per unit area and very good switching performance almost independent of temperature. The.
