SCT2323 2A Synchronous Step-down DCDC Converter

SCT2323 Description

SILICONCONTENT TECHNOLOGY SCT2323，SCT2325 3.8V-32V Vin, 1.1MHz, 2A Synchronous Step-down DCDC Converter with EMI Reduction .
The SCT2323 and SCT2325 are 2A, 1.

SCT2323 Features

* EMI Reduction with Switching Node Ringing-free
* 3.8V-32V Wide Input Voltage Range
* Up to 2A Continuous Output Load Current
* 3.3V ±1% Output Voltage (SCT2323)
* 5V ±1% Output Voltage (SCT2325)
* Fully Integrated 130mΩ Rdson High-side MOSFET and 70m

SCT2323 Applications

* White Goods, Air Conditioner, Refrigerator etc.
* Home Appliance
* Surveillance
* Audio, WiFi Speaker
* Printer
* DTV, STB, Monitor/LCD Display

📥 Download Datasheet

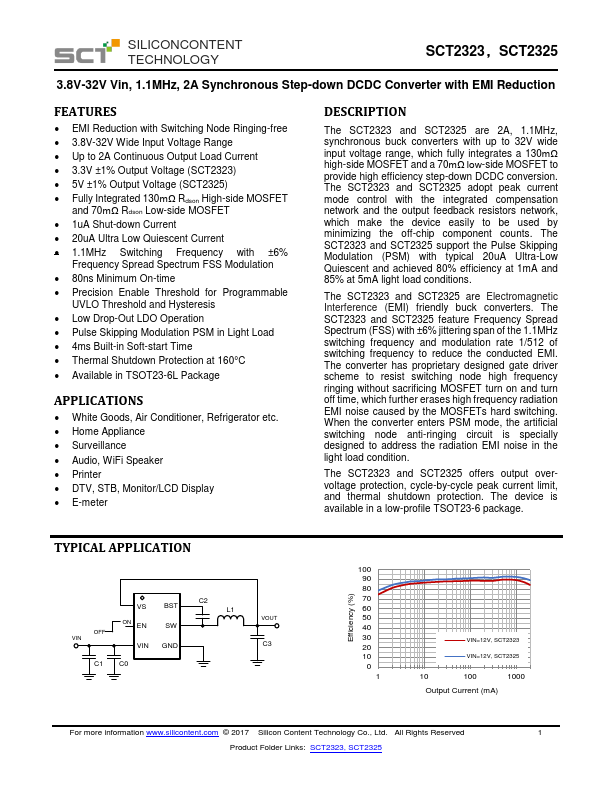

Preview of SCT2323 PDF

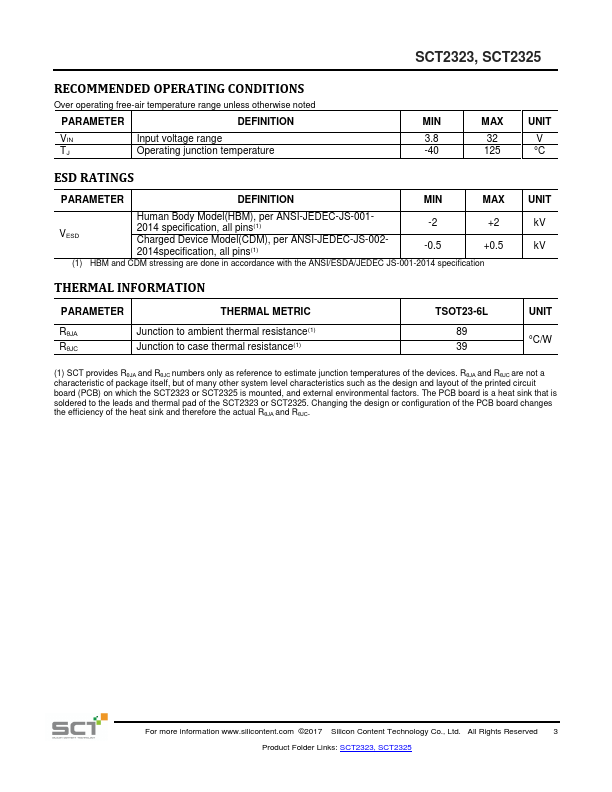

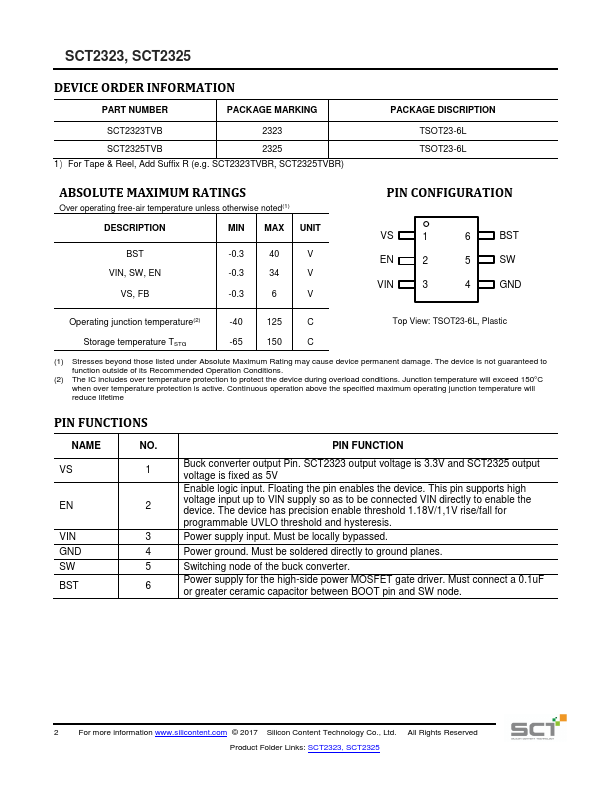

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SCT2323
Manufacturer
SCT
File Size
831.33 KB
Datasheet
SCT2323-SCT.pdf
Description
2A Synchronous Step-down DCDC Converter
