SCT2230 Datasheet - SCT

3A Synchronous Step-down DCDC Converter

SCT2230 Features

* Wide Input Voltage: 4.2-17V

* 3A Continuous Output Current with Integrated 75mΩ/45mΩFETs

* Wide Output Voltage Range:0.8V-7V

* Quiescent Current 150uA

* Cycle-by-Cycle Current Limiting

* Internal 2.5ms Soft-Start Limits the inrush current

* F

SCT2230 General Description

The SCT2230 is a fully integrated high efficiency synchronous step-down DCDC converter capable of delivering 3A current. The devices operate over a wide input voltage range from 4.2V to 17V and fully integrate high-side power MOSFETs and synchronous MOSFETs with very low Rdson to minimize the conduc.

SCT2230 Datasheet (778.65 KB)

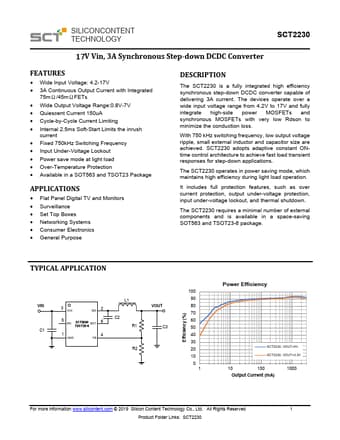

Preview of SCT2230 PDF

Datasheet Details

Part number:

SCT2230

Manufacturer:

SCT

File Size:

778.65 KB

Description:

3a synchronous step-down dcdc converter.
