SCT2301

Single High Constant Current Driver

SCT2301 Features

* LED power supply voltage up to 24V Constant current range: 80 to 480/720mA@3.3/5V Excellent regulation to load, supply voltage and temperature Temperature regulation: ±0.005%/°C Load regulation: ±0.5%/V Line regulation: ±1%/V Maximum operating switching frequency 5MHz Minimum PWM pulse width 200ns C

SCT2301 General Description

The SCT2301 is a single channel constant current driver best for the high power LED lighting and lamp application. It provides the PWM control effect by sinking constant current from high power LED clusters with minimum pulse width 200ns. The PWM control is performed by connecting the PWM signal fro.

SCT2301 Datasheet (295.57 KB)

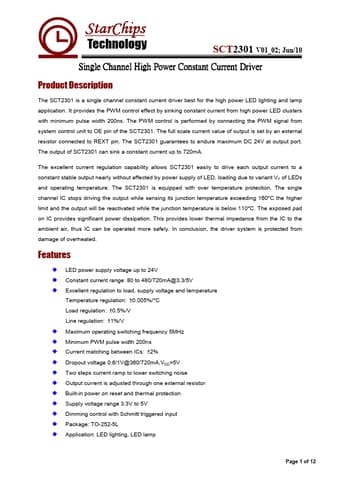

Preview of SCT2301 PDF

Datasheet Details

Part number:

SCT2301

Manufacturer:

StarChips

File Size:

295.57 KB

Description:

Single high constant current driver.
