SCT12A0 Datasheet, Converter, SCT

SCT12A0 Features

  • Converter
  • Wide Input Voltage Range: 2.7V-14.0V
  • Wide Output Voltage Range: 4.5V-14.6V
  • Fully Integrated High-side/Low-side Power MOSFETs:13mΩ/11mΩ
  • Up to 12A

PDF File Details

Part number:

SCT12A0

Manufacturer:

SCT

File Size:

1.67MB

Download:

📄 Datasheet

Description:

30w fully integrated synchronous boost converter. The SCT12A0 is a high efficiency synchronous boost converter with fully integrated a 13mΩ high-side MOSFET and an 11mΩ low-side MOSFE

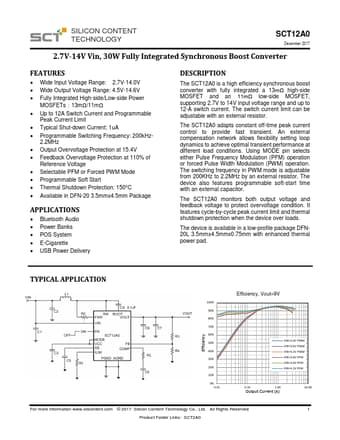

Datasheet Preview: SCT12A0 📥 Download PDF (1.67MB)
Page 2 of SCT12A0 Page 3 of SCT12A0

SCT12A0 Application

  • Applications
  • Bluetooth Audio
  • Power Banks
  • POS System
  • E-Cigarette
  • USB Power Delivery DESCRIPTION Th
