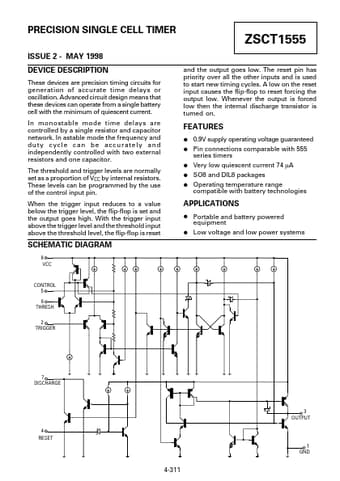

SCT1555, PRECISION SINGLE CELL TIMER

PRECISION SINGLE CELL TIMER ISSUE 2 - MAY 1998 DEVICE .
These devices are precision timing circuits for generation of accurate time delays or oscillation.
datasheet Preview Page 1 from Datasheet4u.com

SCT1555_ZetexSemiconductors.pdf

Preview of SCT1555 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

SCT1555

Manufacturer:

Zetex Semiconductors

File Size:

398.51 KB

Description:

PRECISION SINGLE CELL TIMER

Applications

* Portable and battery powered equipment Low voltage and low power systems SCHEMATIC DIAGRAM 8 VCC CONTROL 5 6 THRESH 2 TRIGGER 7 DISCHARGE 3 OUTPUT 4 RESET 1 GND 4-311 ZSCT1555 ABSOLUTE MAXIMUM RATINGS Supply Voltage Input Voltages (Cont, Reset, Thres, Trig) Output Current Operating Temperatur
