SCT10N120 Datasheet, Mosfet, STMicroelectronics

SCT10N120 Features

  • Mosfet
  • Very tight variation of on-resistance vs. temperature
  • Very high operating junction temperature capability (TJ = 200 °C)
  • Very fast and robust intrinsic body

PDF File Details

Part number:

SCT10N120

Manufacturer:

STMicroelectronics ↗

File Size:

232.26kb

Download:

📄 Datasheet

Description:

Silicon carbide power mosfet. S(3) AM01475v1_noZen This silicon carbide Power MOSFET is produced exploiting the advanced, innovative properties of wide bandgap

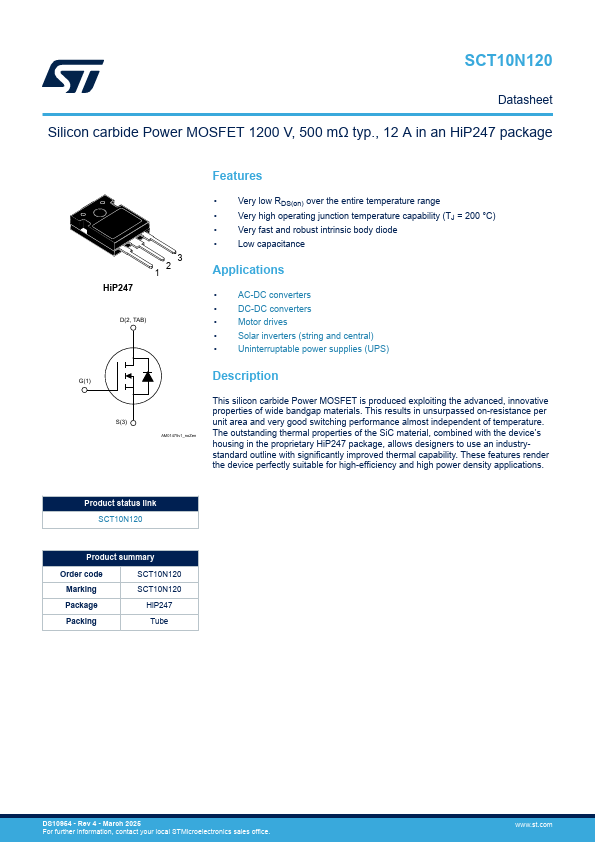

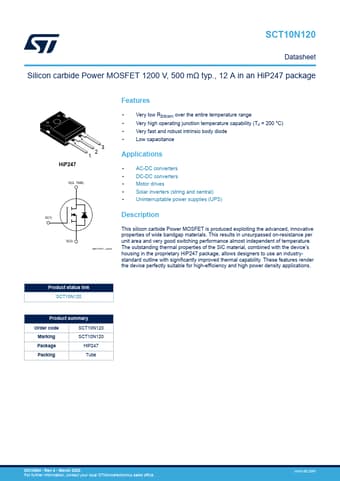

Datasheet Preview: SCT10N120 📥 Download PDF (232.26kb)

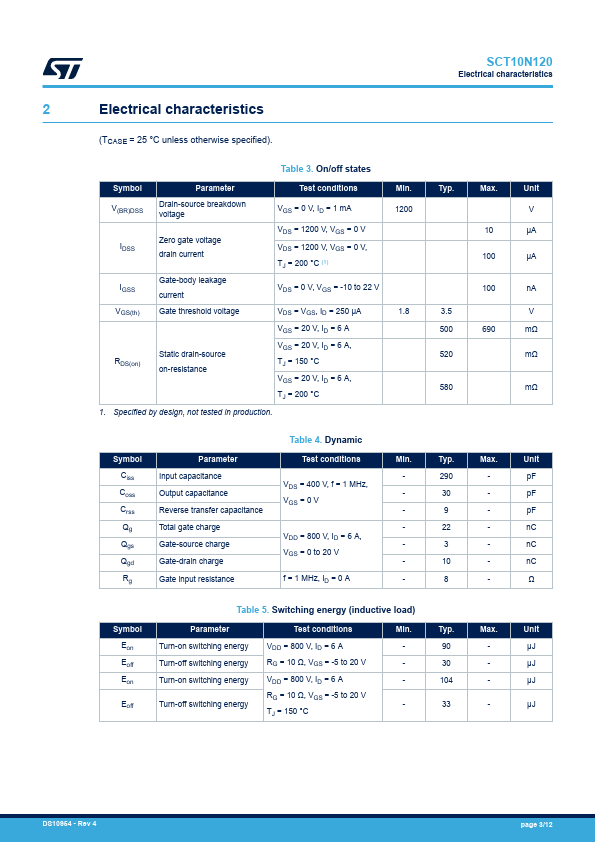

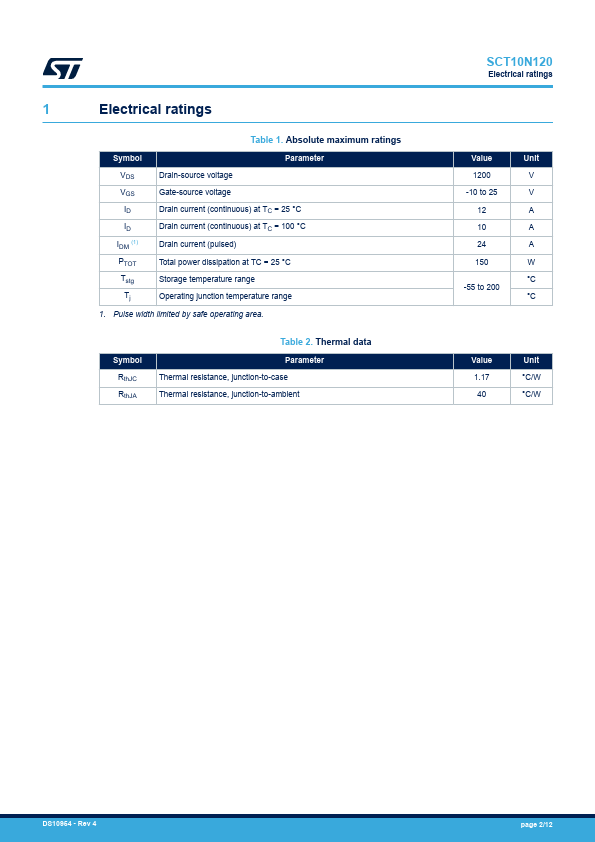

Page 2 of SCT10N120 Page 3 of SCT10N120

SCT10N120 Application

  • Applications
  • Solar inverters, UPS
  • Motor drives
  • High voltage DC-DC converters
  • Switch mode power supplies G(1
