SCT12A3 - Fully Integrated Synchronous Boost Converter

SCT12A3 Description

SILICONCONTENT TECHNOLOGY SCT12A3 2.7V-20V VIN, 15A Switch Current, Fully Integrated Synchronous Boost Converter with Load Disconnection Control and.
The SCT12A3 is a high efficiency synchronous boost converter with fully integrated a 13mΩ high-side MOSFET and an 11mΩ low-side MOSFET, supporting 2.

SCT12A3 Features

* Wide Input Voltage Range: 2.7V-20V
* Wide Output Voltage Range: 4.5V-21V
* Fully Integrated 13mΩ High Side FET and 11mΩ Low Side FET
* Up to 96% Efficiency at Vin=7.2V, Vout=15V, and Iout=2A
* Up to 15A Switch Current and Programmable Peak Current Limit
* Adjustable Adaptiv

📥 Download Datasheet

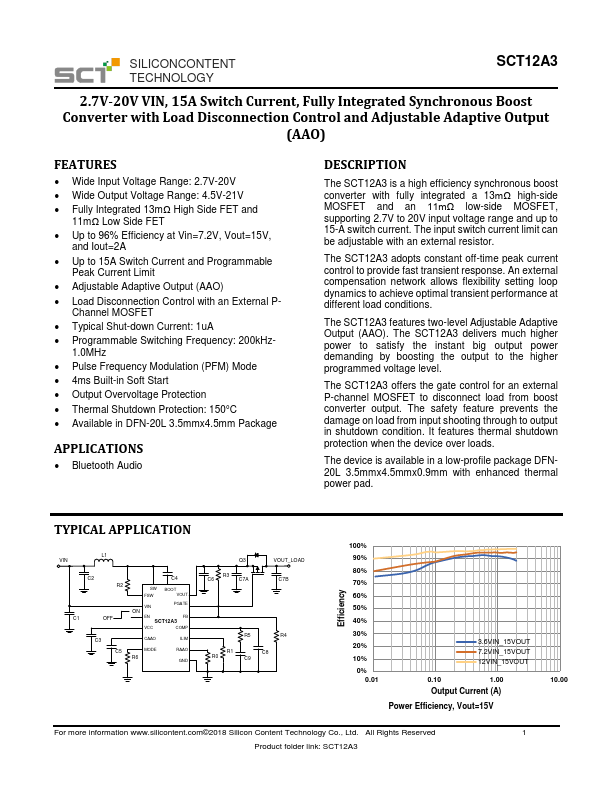

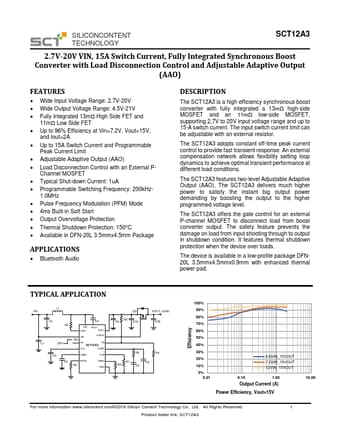

Preview of SCT12A3 PDF

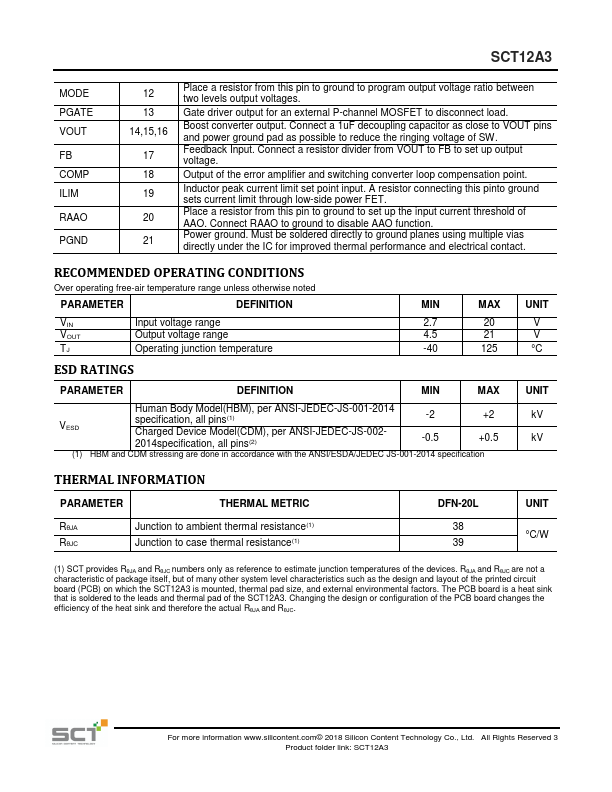

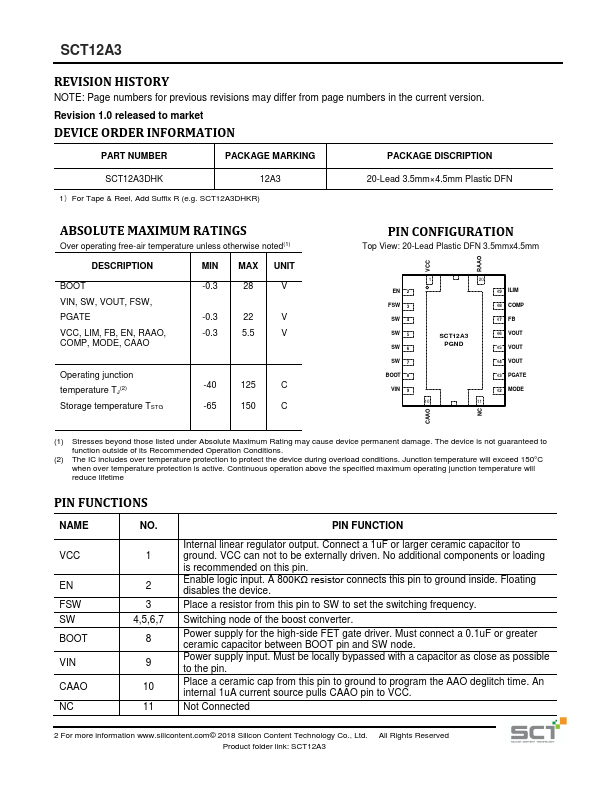

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SCT12A3
Manufacturer
SCT
File Size
1.74 MB
Datasheet
SCT12A3-SCT.pdf
Description
Fully Integrated Synchronous Boost Converter
