SSF6808A, SSF6808A-GOOD, 68V N-Channel MOSFET

SSF6808A 68V N-Channel MOSFET .
The SSF6808A is a new generation of middle voltage and high current N. Channel enhancement mode trench power MOSFET.

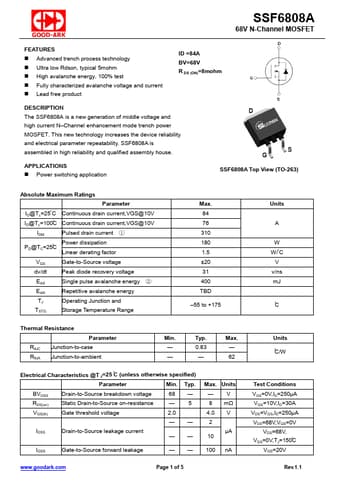

datasheet Preview Page 1 from Datasheet4u.com

SSF6808A-GOOD-ARK.pdf

SSF6808A Datasheet Preview — This datasheet PDF includes multiple part numbers: SSF6808A, SSF6808A-GOOD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SSF6808A, SSF6808A-GOOD

Manufacturer:

GOOD-ARK

File Size:

0.97 MB

Description:

68V N-Channel MOSFET

Note:

This datasheet PDF includes multiple part numbers: SSF6808A, SSF6808A-GOOD.
Please refer to the document for exact specifications by model.

Features

* Advanced trench process technology
* Ultra low Rdson, typical 5mohm
* High avalanche energy, 100% test
* Fully characterized avalanche voltage and current

Applications

* Power switching application SSF6808A Top View (TO-263) Absolute Maximum Ratings Parameter ID@Tc=25ْ C Continuous drain current,VGS@10V ID@Tc=100Cْ Continuous drain current,VGS@10V IDM Pulsed drain current ① Power dissipation PD@TC=25ْC Linear derating factor VGS Gate-to-Source voltage
