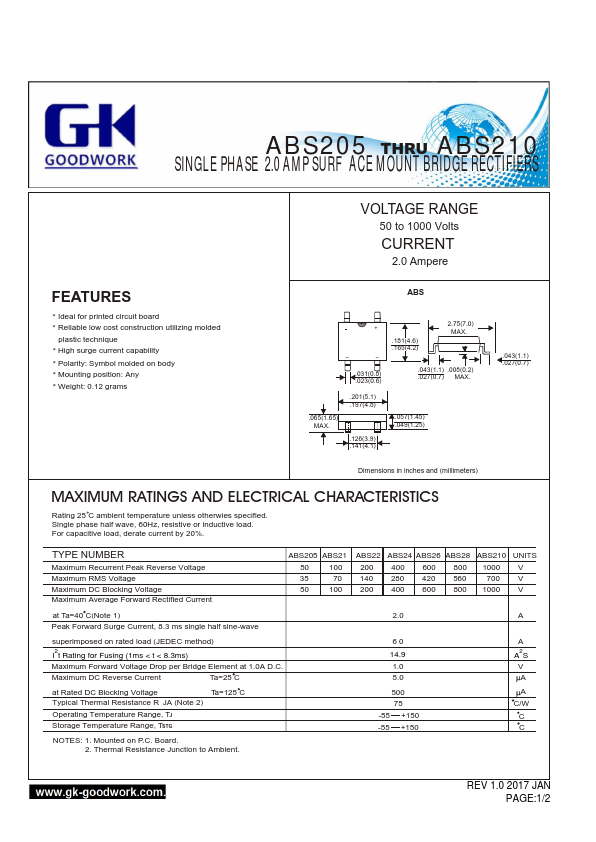

ABS205 - SINGLE PHASE 2.0 AMP SURF ACE MOUNT BRIDGE RECTIFIERS

Datasheet Details

Ideal for printed circuit board.
Reliable low cost construction utilizing molded plastic technique.
High surge current capability.
Polarity: Symbol molded on body.
Mounting position: Any.
Weight: 0.12 grams ABS + ~ ~ .031(0.8) .023(0.6) .181(4.6) .165(4.2) 2.75(7.0) MAX. .043(1.1) .008(0.2) .027(0.7) MAX. .065(1.65) MAX. .201(5.1) .197(4.8) .126(3.9) .141(4.1) .057(1.45) .049(1.25) .043(1.1) .027(0.7) Dimensions in inches and (millimeters).
